Apply adhesive material - AR67.10-P-1000-08TS

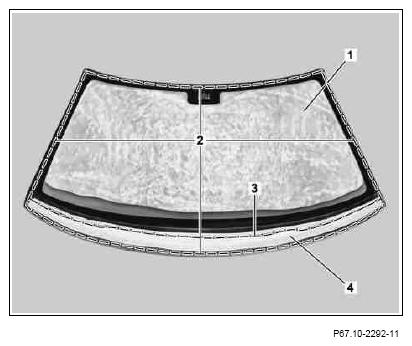

Install windshield (1) on body flange (1) within 10 minutes after applying adhesive material (2, 3), otherwise adhesive force of adhesive material (2, 3) starts to decrease.
- Guide application nozzle along adhesive surface on windshield (1) and uniformly apply adhesive material (2) in form of bead with height of approx. 16 mm.
- Uniformly apply support bead (3) to white adhesive tape (4) on windshield (1) in form of bead with a height of approx. 16 mm.
Completely press out adhesive material not required, immediately following application.
