Align windshield in body opening - AR67.10-P-1000-04T

CHECK VALUES FOR WINDSHIELD

Number	Designation		Model 211 without code 413, 419	Model 211 with code 413, 419
BE67.10-P-1001-01C	Distance between edge of sprayed area at windshield and front edge of roof	mm	2	-
BE67.10-P-1002-01C	Distance between top edge of window and base center point of clip attaching trim strip at top-	mm	-	4.5

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

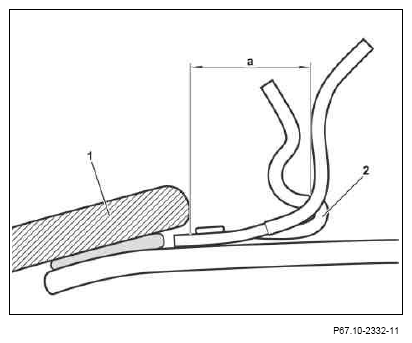

Fig 2: Identifying Windshield, Mounting Clip & Upper Trim Strip

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Before applying glue bead position windshield (1) on windshield rubber spacers.
Center windshield (1).
On vehicles with code (413) Panoramic sliding roof or with code (419) Solar module for panoramic roof, adjust distance between top edge of roof and base center point on mounting clip (2) on upper trim strip (a), center at side and fix in place with adhesive strips.

On vehicles without code (413) Panoramic sliding roof or without code (419) Solar module for panoramic roof, completely move windshield (1) with rubber lip to front edge of roof, center at side and fix in place with adhesive strips (distance results from rubber lip).

Fig 3: Identifying Strips Of Adhesive Tape
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Glue on strips of adhesive tape (arrows).
Cut through adhesive strips (arrows) at edges of windshield (1).
Do not damage rubber channel beneath, do not remove adhesive strips (arrows).
Remove windshield (1) from vehicle.
