Prepare rear panoramic glass roof for installation - AR77.21-P-0600-02T

MODIFICATION NOTES

13.12.05

Repair product modified

Fig 1: Identifying Cutting Blade (124 589 21 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1089-02A	Repair kit, installing window, 1-component adhesive, replaced by: A 221 670 81 01	A 221 670 21 01
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67

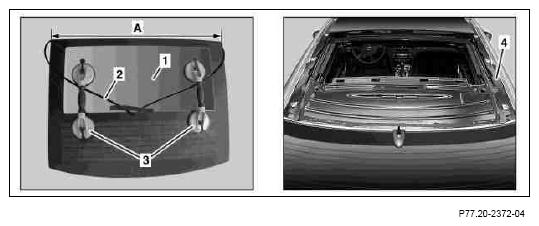

Fig 3: Identifying Panoramic Roof Frame, Glass Roof, Seal And Suction Tool

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Check glass roof (1) for damage and scratches.
Install cup suction tool (3) on outside of glass roof (1).
Install seal (2) on glass roof (1) into groove only at front in area "A" with mounting wedge; fasten seal (2) on left and right on glass roof (1) with adhesive tape.
Use lubricant
Apply cleaner from repair kit with lint-free rag in gluing area on glass roof, then rub dry with second rag.
Apply primer to adhesive surfaces on glass roof (1).
Allow primer to flash off for at least 10 minutes to prevent adhesion problems.
Cut off adhesive material residues on panoramic roof frame (4) with multicutter and cutting blade; remove loose adhesive material.
Not more than 0.5 mm must remain.
Apply cleaner from repair kit with lint-free rag in gluing area on panoramic roof frame, then rub dry with second rag.
Repair paint damage on panoramic roof frame (1) with primer pen.
If adhesive material residues are damaged or missing on panoramic roof frame (4), apply primer in gluing area. To avoid paint adhesion problems, adhesive surfaces should be free of dust, oil, grease, wax and other co-adhesive components or dirt residues.
