Panorama sliding roof convenience opening with recirculated air button, function - GF77.20-P-2019T

MODEL 211.0

up to model year 08/YoM 07

with CODE (413) Panoramic sliding roof

MODEL 211.0

as of model year 09/YoM 08

with CODE (413) Panoramic sliding roof

except CODE (494) USA version

except CODE (460) Canada version

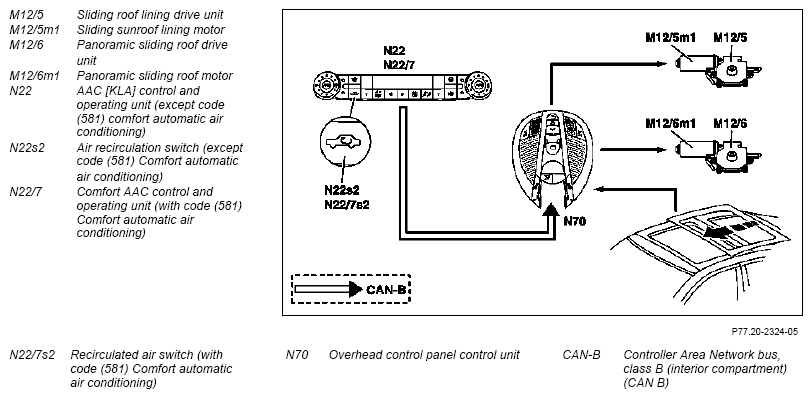

Fig 1: Panorama Sliding Roof Convenience Opening With Recirculated Air Button Communication Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function conditions

Circuit 15R ON
General function requirements for system

Function

By actuating the recirculation switch (N22s2) on the AAC [KLA] control and operating unit (N22) (except code (581) Comfort automatic air conditioning) or the air recirculation switch (N22/7s2) on the comfort AAC control and operating unit (N22/7) (with code (581) Comfort automatic air conditioning), the panoramic sliding roof can be closed. The last approached position of the panoramic sliding roof is stored in the process. When the recirculated air mode is completed the sliding roof or power windows move back to this stored position. Although this only happens if the panoramic sliding roof has not been operated manually during recirculated air mode.

If an opening operation is started via the air recirculation switch while closing, the panoramic sliding roof reverses directions

Interruption of sequence

Function requirements are not satisfied
Blockage detection
Zero point tolerance exceeded
Actuation request is rescinded
Failure of CAN message (CAN = Controller Area Network).

The windows are also closed and their position stored when the panoramic sliding roof is closed via recirculated air control.

Panorama sliding roof convenience closing, function	GF77.20-P-2011T
Convenience opening panorama sliding roof with recirculated air button, function	GF77.20-P-2018T
Panorama sliding roof lock-up recognition, function	GF77.20-P-3007T
Panorama sliding roof position measurement, function	GF77.20-P-3008T
