Remove/install front floor covering (right) - AR68.20-P-2070T

MODEL 211.0/2/6

Shown on model 211.0

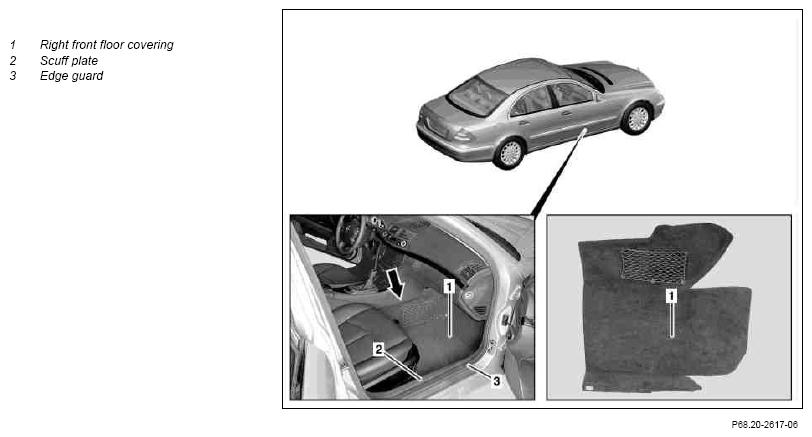

Fig 1: Identifying Front Floor Covering Components (Right)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove cover below right instrument panel		AR68.10-P-1520T
2	Remove right A-pillar paneling	Footwell paneling	AR68.30-P-4050TA
3	Remove edge guard (3) in area of scuff plate (2)
4	Remove scuff plate (2)
5	Pull out right front floor covering (1) from below instrument panel (arrow)
6	Remove right front floor covering (1)
7	Install in the reverse order
