Transfer bracket on A-pillar for front fender - AR88.10-P-1010-01T

COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1003-29A Hand riveter
WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1005-03A Wet/dry vacuum cleaner
  1. Unscrew bolts (1) and remove bracket (2)

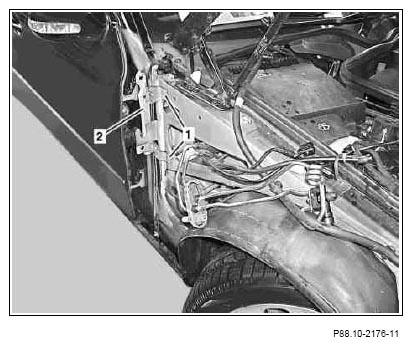

    Fig 1: Identifying Bracket And Bolts
    G07507329Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  2. Check seam sealing (3) in repair area for damage and corrosion

    IMPORTANT If necessary, eliminate corrosion and repair seam sealing (3).

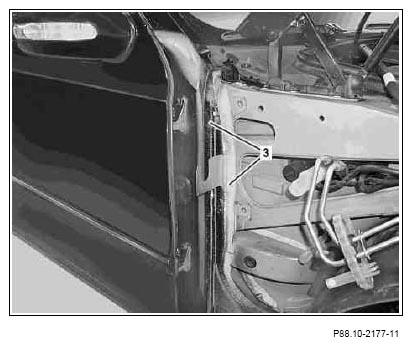

    Fig 2: Locating Seam Sealing In Repair Area
    G07507330Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  3. Position bracket (4) above stop (7) and chamfer (5) on bracket (6) and mark position of holes in bracket (4)
  4. Drill dia. 6.5 mm hole in bracket (6) and evacuate drilling chips.
  5. Prime holes
  6. Fasten bracket (4) with 2 rivets (8) and COMMERCIALLY AVAILABLE TOOLS hand riveter

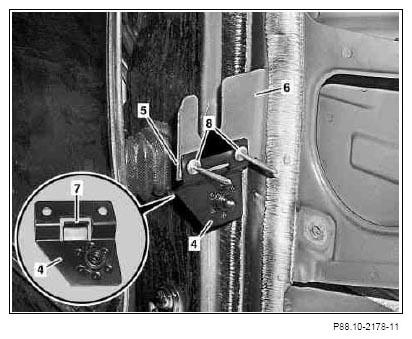

    Fig 3: Installing Bracket
    G07507331Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
