Remove/install fender liner in front fender - AR88.10-P-1300T

MODEL 211.0/2/6

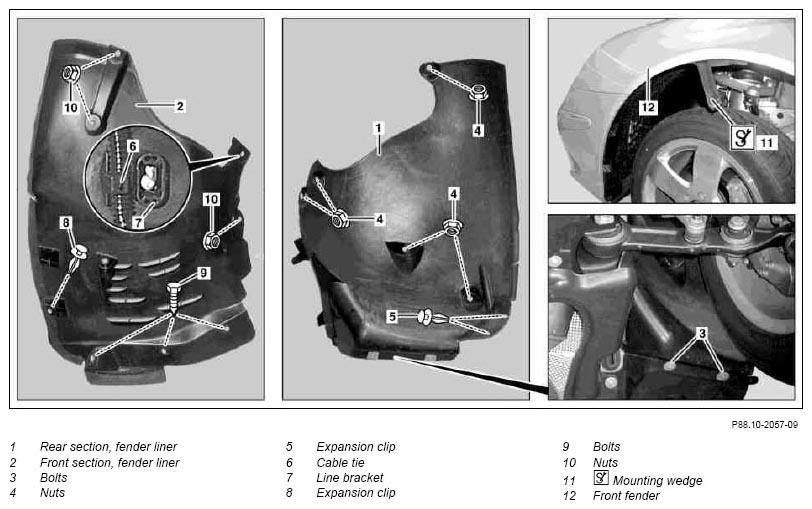

Fig 1: Identifying Front Fender Liner Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with lifting platform
2	Turn left or right wheel of front axle to full lock
3.1	Remove rear part piece of lower engine compartment paneling	Vehicles with gasoline engines	AR61.20-P-1105T
3.2	Remove bottom part of rear noise encapsulation	Vehicles with diesel engines	AR94.30-P-5300T
4	Remove bolts (3)
5	Unscrew nuts (4)
6	Remove expansion clips (5)
7	Loosen rear section, fender liner (1) from front fender (12) with assembly wedge (11) and remove	Installation:  Ensure that fender liner rear section (1) and rubber seal are seated properly.	Figure
8	Remove cable tie (6) and line bracket (7).	Installation:  Replace cable ties (6).
9	Remove expansion clip (8).
10	Remove bolts (9)
11	Unscrew nuts (10)
12	Loosen rear section, fender liner (2) from front fender (12) with assembly wedge (11) and remove	Installation:  Ensure that front section of fender liner (2), and rubber seal are seated properly.	Figure
13	Install in the reverse order

Fig 2: Identifying Assembly Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
