Special signal system, government/emergency vehicles, networking of components - GF82.25-P-0001-02T

15.03.07

The document has been updated to this date and will no longer be subject to revision.

Networking

The two figures illustrate networking of the major system components for the government and emergency vehicle special signal system with panic alarm system (GAS).

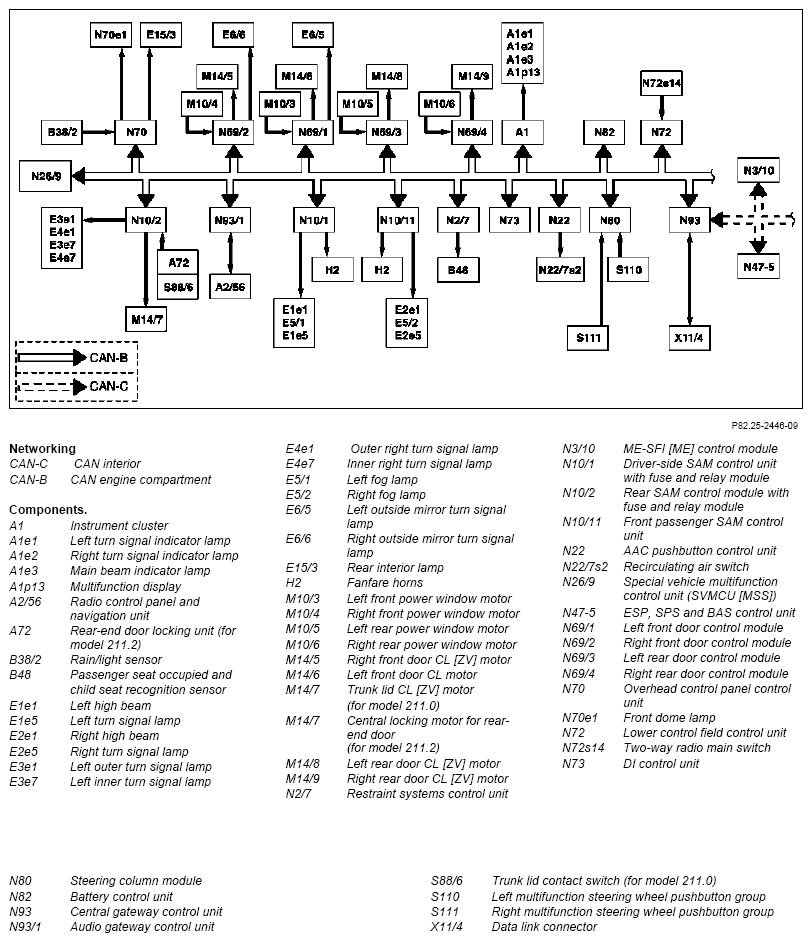

Fig 1: Networking Of Government And Emergency Vehicle Special Signal System With Panic Alarm System Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

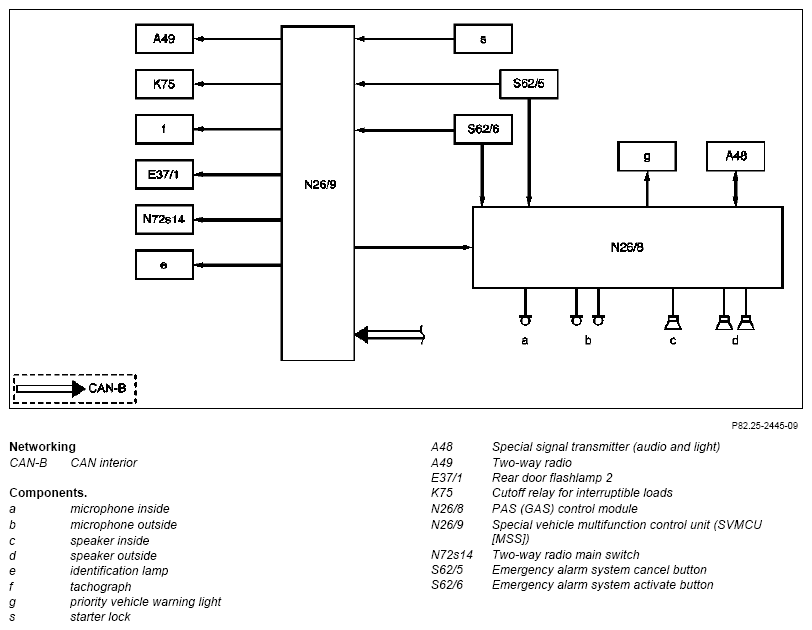

Fig 2: Networking Of Government And Emergency Vehicle Special Signal System With Panic Alarm System Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
