Headlamp leveling system motor, location/task/design/function - GF82.10-P-2101TT

MODEL 211.0 /2 up to 31.5.06 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with integrated curve illumination except CODE (494) USA version except CODE (498) Japan version

MODEL 211.0 /2 up to 30.6.06 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with integrated curve illumination with CODE (494) USA version with CODE (498) Japan version Shown on the left front headlamp unit (E1), bottom side

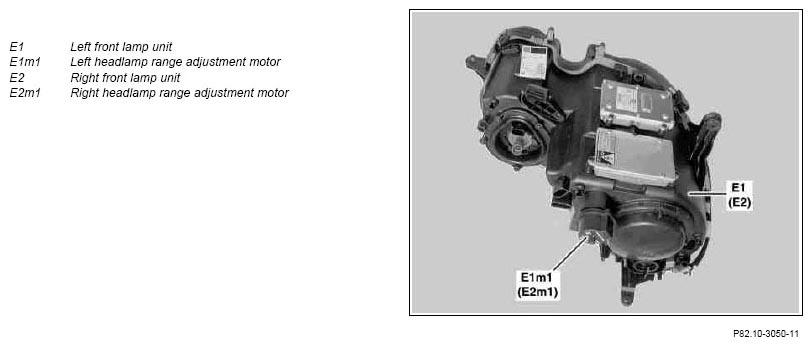

Fig 1: Identifying Front Lamp Units & Headlamp Range Adjustment Motors

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Headlamp range adjustment motor, location	The left headlamp range adjustment motor (E1m1) is secured to the rear of the left front lamp unit (E1), the right headlamp range adjustment motor (E2m1) to the rear of the right front lamp unit (E2).
Headlamp range control motor, purpose	Adjustment of the reflectors by actuating the respective power module. The integrated potentiometers register the positions of the motors.
