Fiber optical cable location/design/function - GF82.00-P-4000T

Model 211.0 /2

Shown on model 211.0

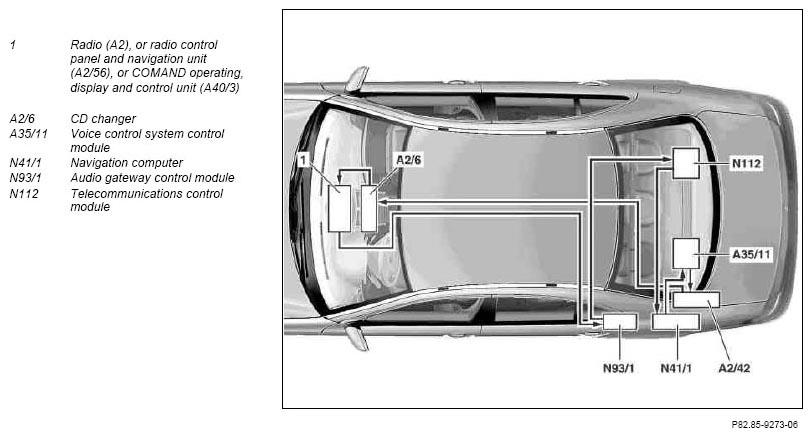

Fig 1: Locating Optical Cable

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fiber optical cable location	Is dependent on the appropriate series.
Fiber optical cable design	Optical data transfer between ring subscribers.
Fiber optic cable, function		GF82.00-P-4000-04T
