Emergency alarm system activation button, location/task/design/function - GF82.25-P-4100T
MODEL 211 with CODE (934) Taxi emergency alarm unit

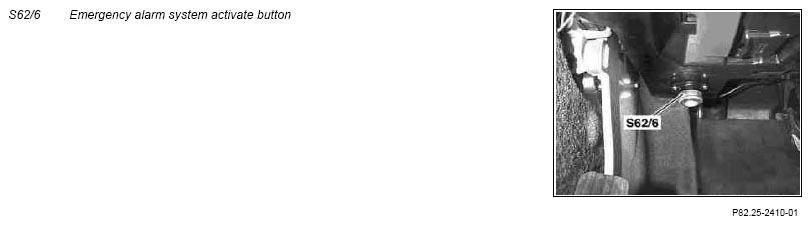

| Emergency alarm system activate button position | The emergency alarm system activate button (S62/6) is installed in the footwell on the driver's side above the pedals. The actual installation position can be varied to comply with customer requests. | |
| Emergency alarm system activate button task | GF82.25-P-4100-02T | |
| Emergency alarm system activate button design | The emergency alarm system activate button (S62/6)
consists of a pushbutton with a single-pin sliding contact switching to ground. A resistor is wired into the circuit in parallel with the contact switch. |
|
| Emergency alarm system activate button function | GF82.25-P-4100-04T |
