Telephone interface, location/task/design/function - GF82.70-P-3107TU

MODEL 211.0 /2 with CODE (528) HIGH Class USA

Shown on model 211.0

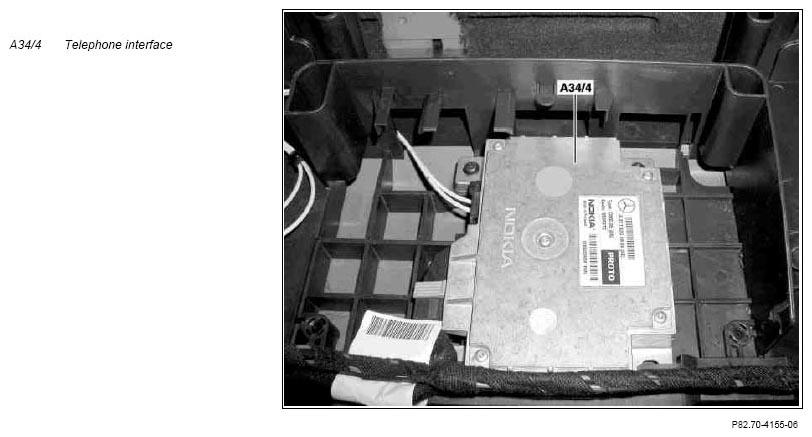

Fig 1: Identifying Telephone Interface

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Telephone interface, location	The telephone interface (A34/4) is located on the luggage compartment floor behind the rear bench seat.
	Model 211.2	GF82.70-P-3107-01TU
Telephone interface, purpose	The telephone adapter of the telephone interface makes possible the connection of the portable CTEL (A34/6) as a ring participant to the MOST (Media Oriented System Transport). The portable CTEL (A34/6) is charged via the interface. It establishes the antenna connection to the vehicle.
Telephone interface, design	MOST interface Signal processing and conversion Input for the MOST wake up signal
Telephone interface, function		GF82.70-P-3107-02TU
