Telephone antenna, location/task - GF82.62-P-4105TJ

MODEL 211.0 up to 30.6.06 with CODE (529) HIGH Class Japan

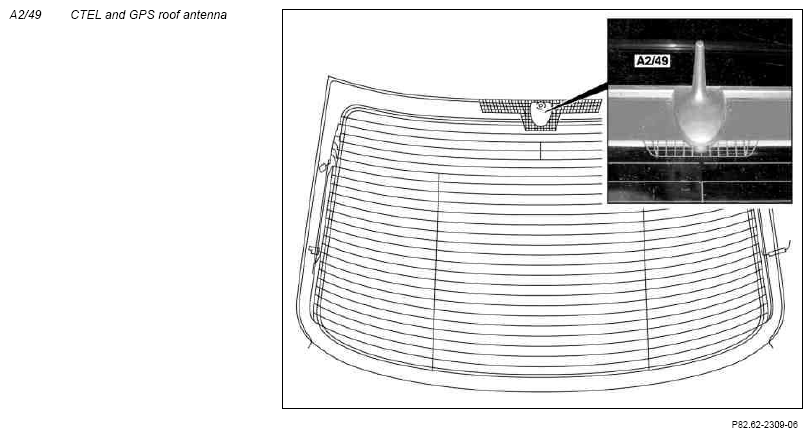

Fig 1: Identifying CTEL And GPS Roof Antenna

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

With E-call or navigation the following antennas are integrated in the telephone and GPS roof antenna (A2/49):

With standard equipment only the telephone antenna (A2/49a1) is needed.

Telephone antenna, location	The telephone and GPS roof antenna (A2/49) is located on the upper part of the rear window.
Telephone antenna, purpose	The telephone antenna (A2/49a1) sends and receives telephone radio signals and converts the radio frequency (HF) oscillation of the electrical field in the air into high-frequency AC voltage.
