Telecommunications control unit, location/task/design/function - GF82.70-P-3114TU

MODEL 211.0 /2 with CODE (528) HIGH Class USA

Shown on model 211.0

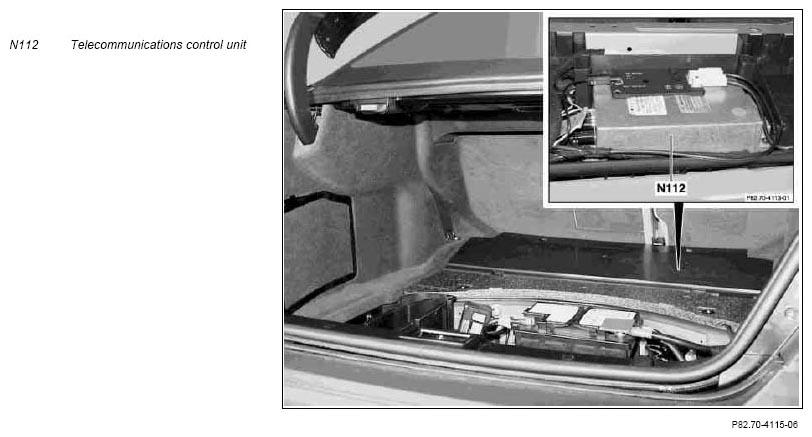

Fig 1: Locating Telecommunications Control Unit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Telecommunications control unit, location	The telecommunications control unit (N112) is located on the trunk floor behind the rear bench seat and is fitted as standard on USA vehicles.
	Model 211.2	GF82.70-P-3114-01TU
Telecommunications control unit Purpose	Communications platform for: Telephone/short message service (SMS) Emergency call (E-call) Service and breakdown assistance Traffic services Internet
Telecommunications control unit Body		GF82.70-P-3114-03TU
Telecommunications control unit Function		GF82.70-P-3114-04TU
