Subwoofer amplifier, component description - GF82.62-P-3050TM
MODEL 211, 219 with CODE (810) Sound system as of Model Year 9 /AEJ 07
Shown on model 211.0
Location

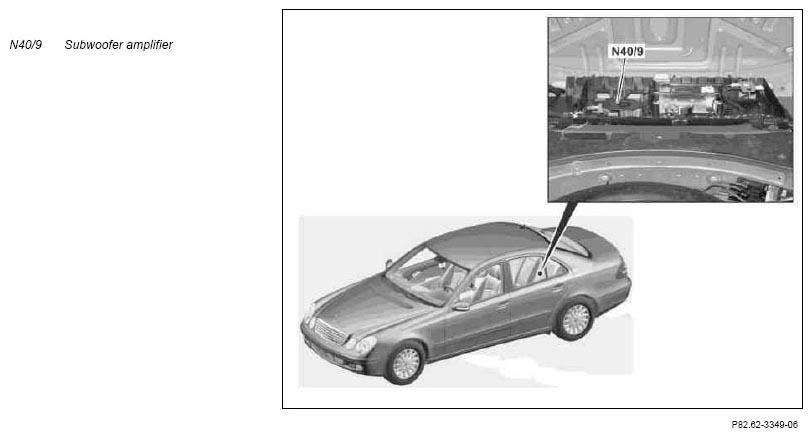

The subwoofer amplifier is located on the equipment bridge in front of the spare tire well.
Task
- Receiving signals
- Amplifying and supporting signals
- Transmitting signals
Receiving signals
Direct lines
- Power supply, circuit 30 and circuit 31 each via one discrete line
- Switch on signal from sound system amplifier (N40/3) over discrete line
- Audio signals over 2 discrete lines from sound system amplifier
Amplifying and supporting signals
- Support of 7.1 Surround technology
- Amplifying audio signals
Transmitting signals
Direct lines
- Audio signals to subwoofer speaker via discrete lines
Function
The subwoofer amplifier is controlled directly by the sound system amplifier. The audio signals are amplified according to their input strength and output to the subwoofer speaker.
