Right antenna amplifier module component description - GF82.62-P-3122TXE

MODEL 211, 219 as of Model Year 9 /AEJ 07

Shown on model 211.0

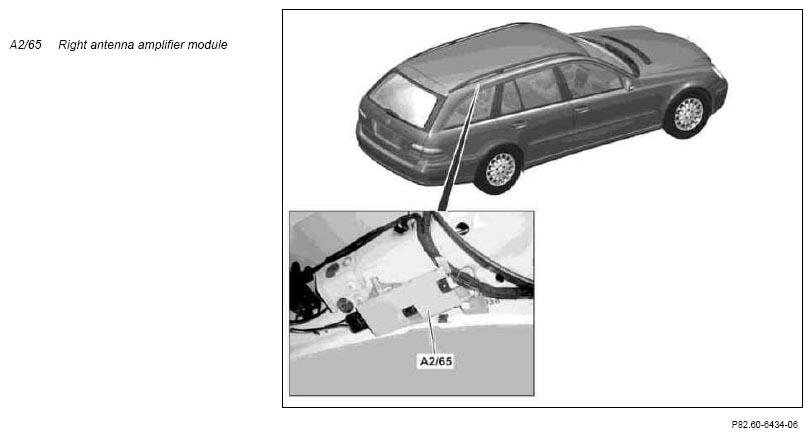

Location:

The right antenna amplifier module is located beneath the paneling at the right C-pillar.

Shown on model 211.2

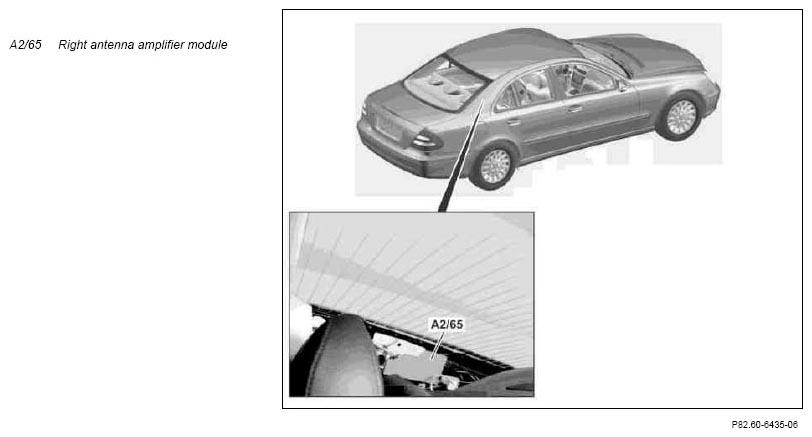

Location:

The right antenna amplifier module is located beneath the paneling above the right rear side window.

Task (models 211.0, 219)

• Receiving and relaying Keyless Go signals to the rear module KEYLESS GO control unit (N102) (with code (889) Keyless Go)
• Receiving and relaying band III signals to the Digital Audio Broadcasting control unit (N87/3) (with code 537 Digital radio)
• Receiving and relaying the television (TV) signals (TV3 and TV4) to the TV combination tuner (analog/digital) (A90/1) (with code 863, Digital/analog TV tuner, except code 494, USA version).
• Decoupling the rear window from the body mass and the subharness via a suppression filter

Task (model 211.2, except code 494 USA version)

• Receiving, amplifying and relaying the frequency modulation (FM)2 signals:
  • the radio (A2),
  • the radio control panel and navigation unit (A2/56) or
  • the COMAND operating, display and controller unit (A40/3).
• Receiving and relaying Keyless Go radio signals to the rear module KEYLESS GO control unit (with code 889 Keyless Go)
• Receiving and relaying band III signals to the Digital Audio Broadcasting control unit (with code 537 Digital radio)
• Receiving and relaying the TV signals (TV1) to the TV combination tuner (analog/digital) (with code 863, Digital/ analog TV tuner, except code 494, USA version).
