Rear window antenna, location/task/design/function - GF82.62-P-3106TU
MODEL 211.0 up to 30.6.06 with CODE (528) HIGH Class USA

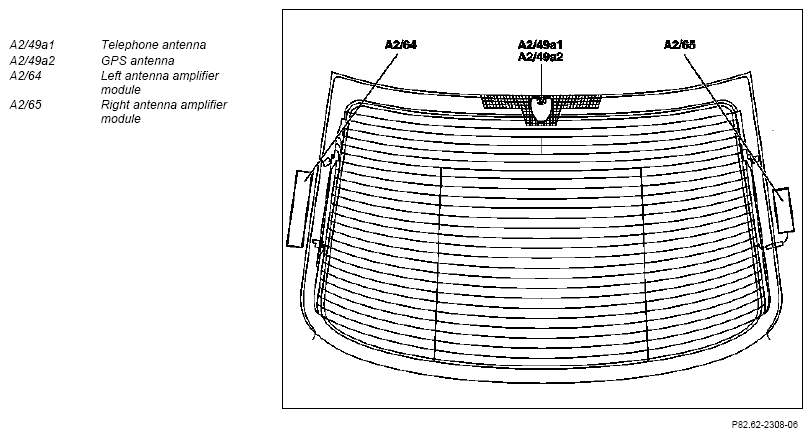

Shown on model 211.0
| Rear window antennas, location | GF82.62-P-3106-01TU | |
| Rear window antennas, purpose | The antennae have to convert the high-frequency (HF) vibrations of the electrical field in the air into a high-frequency AC voltage in an electrical conductor. | |
| Rear window antennas, design | The antennas are an integral part of the wires in the rear window defroster. A block circuit consisting of a number of inductive coils is integrated into the heating wires. | |
| Rear window antennas, function | GF82.62-P-3106-04TU |
