Rear window antenna, location/task/design/function - GF82.62-P-3106TJ
MODEL 211.0 up to 30.6.06 with CODE (529) HIGH Class Japan

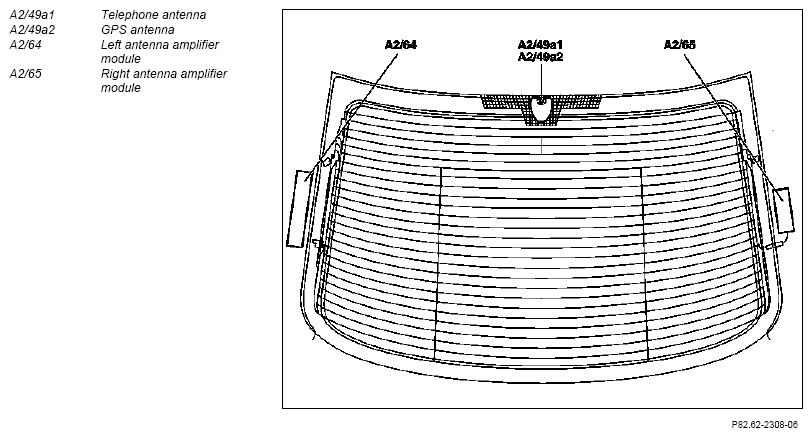

| Rear window antennas, location | GF82.62-P-3106-01TJ | |
| Rear window antennas, purpose | The antennae have to convert the high-frequency (HF) vibrations of the electrical field in the air into a high-frequency AC voltage in an electrical conductor. | |
| Rear window antennas, design | The antennae are part of the heating wires of the rear window heater. A block circuit consisting of a number of inductive coils is integrated into the heating wires. |
|
| Rear window antennas, function | GF82.62-P-3106-04TJ |
