Rear window antenna, location/task/design/function - GF82.62-P-3106T
MODEL 211.0 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version

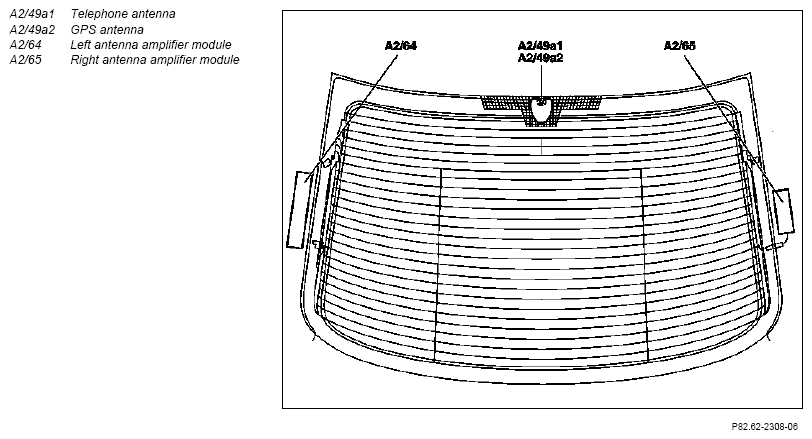

| Rear window antennas, location | GF82.62-P-3106-01T | |
| Rear window antennas, purpose | The antennas must convert the high-frequency (HF) oscillation of the electrical field in the air to a high frequency AC voltage in an electrical conductor. | |
| Rear window antennas, design | The antennas are an integral part of the wires in the rear window defroster. A block circuit consisting of a number of inductive coils is integrated into the heating wires. | |
| Rear window antennas, function | GF82.62-P-3106-04T |
