Radio control panel, location/task/design/function - GF82.60-P-3115TC

MODEL 211.0 /2 as of 1.3.03

Location of component

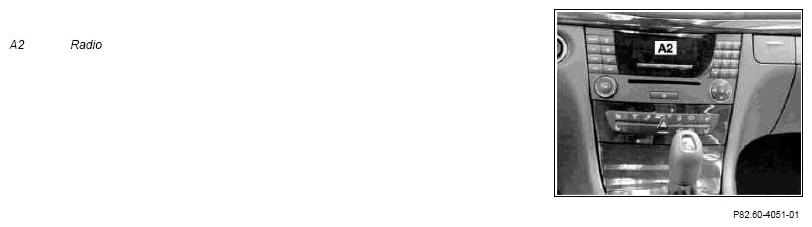

Fig 1: Identifying Radio
G07504588Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Radio control panel, location The radio (A2) (Audio 20 CD) is installed in the 2-DIN recess in the center console between the interior air conditioning operating module and the upper control panel.
Radio control panel, task Central control of the following systems:
  • Radio
  • CD changer
  • Sound system (Basic/Sound)
  • Voice control system
  • Telephone

Radio control panel, design   GF82.60-P-3115-03TC
Radio control panel, function   GF82.60-P-3115-04TC
