Multifunction antenna, component description - GF82.62-P-3137TM
MODEL 211.0 /2 as of 1.6.06 except CODE (494) USA version except CODE (498) Japan version except CODE (413) Panoramic glass roof with top sliding roof
MODEL 211.0 /2 as of 1.7.06 with CODE (494) USA version except CODE (413) Panoramic glass roof with top sliding roof
MODEL 211.0 /2 as of 1.7.06 with CODE (498) Japan version except CODE (413) Panoramic glass roof with top sliding roof
MODEL 211.0 as of 1.7.06 with CODE (494) USA version with CODE (413) Panoramic glass roof with top sliding roof

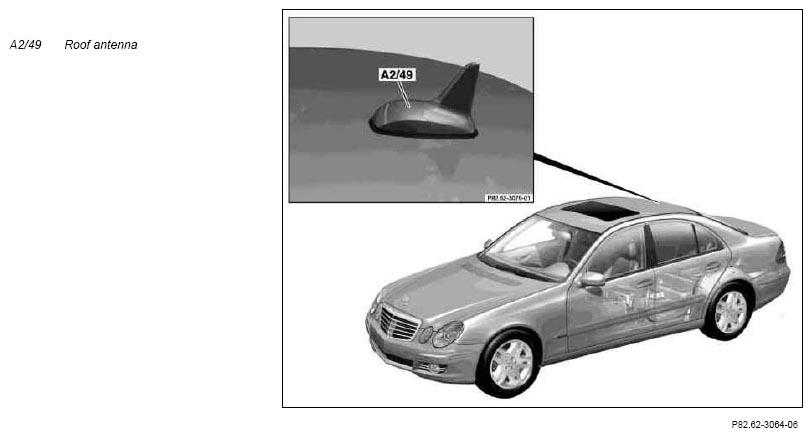

Shown on model 211.0
Location
The roof antenna is installed on the rear of the vehicle roof.
Tasks (up to model year 09)
- Transmitting telephone signals (D-net and E-net)
- Receiving and forwarding telephone signals via the E-net compensator (A28/3) and the UPCI [UHI] cell phone holder (Universal Handy Interface) (A34/15) to the Universal Cell phone Interface (UPCI [UHI]) control unit (N123/1).
- Receiving and forwarding Global Positioning System (GPS) signals to the navigation processor (N41/1).
- Receiving and forwarding satellite digital audio radio (satellite radio) (SDAR) signals (with code (536), SIRIUS satellite radio and code (494), USA version).
Tasks (as of model year 09)
- Transmitting telephone signals
- Receiving and forwarding telephone signals via the E-net compensator and the Universal Portable Cell Phone Interface (UPCI [UHI]) cell phone holder to the radio (A2), the radio control panel and navigation unit (A2/56) or the COMAND operating, display and controller unit (A40/3).
- Receiving and forwarding GPS signals to the radio control panel and navigation unit or the COMAND operating, display and controller unit.
- Receiving and forwarding signals to the Digital Audio Broadcasting control unit (N87/3) (with code (537) Digital radio and code (833) Great Britain version) or to the satellite digital audio radio (satellite radio) (SDAR) (with code (536) SIRIUS satellite radio and code (494) USA version).
