Left antenna amplifier module, component description - GF82.62-P-3121TM
MODEL 211.0 /2 as of 1.6.06 except CODE (494) USA version except CODE (498) Japan version
Shown on model 211.0
Location

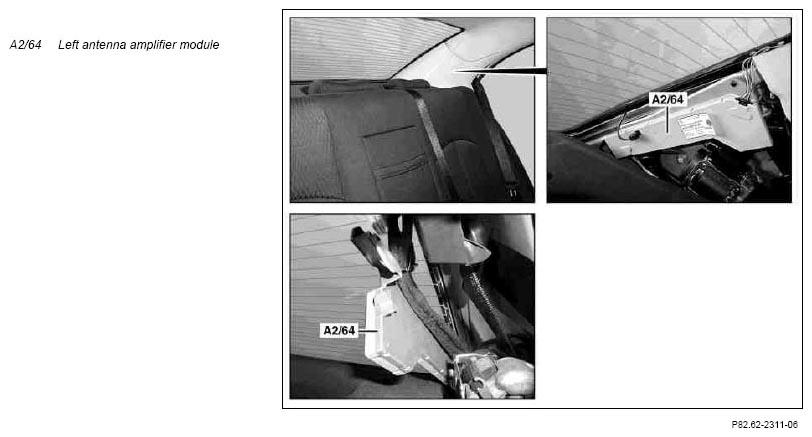

The left antenna amplifier module is mounted to the left of the C-pillar in the direction of travel.
Task (model 211.0)
- Receiving and forwarding the AM/FM signals to the audio gateway control unit (N93/1)
- Receiving and forwarding the TV signals (TV1 and TV2) to the TV combination tuner (analog/digital) (A90/1)
- Decoupling the rear window from the body mass and the wiring harness via a block circuit
Task (model 211.2)
- Receiving and forwarding the AM/FM signals via the amplifier module 1, window antenna (A2/71) to the audio gateway control unit
- Decoupling the rear window from the body mass and the wiring harness via a block circuit
