Hands-free microphone, location/task - GF82.70-P-4102TU

MODEL 211.0 up to 30.6.06, 211.2 with CODE (528) HIGH Class USA

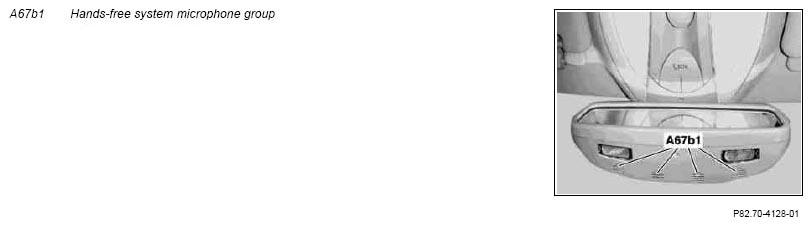

Fig 1: Identifying Hands-Free System Microphone Group

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Hands-free system microphone, location	The hands-free system microphone group (A67b1) is integrated in the inside rearview mirror.
Hands-free system microphone, purpose	Voice input for making telephone calls using the hands-free system Voice input for the voice control system (VCS) Voice input for an emergency call (E-call)
