Hands-free microphone, location/task - GF82.70-P-4102TJ

MODEL 211.0 /2 up to 30.6.06 with CODE (529) HIGH Class Japan

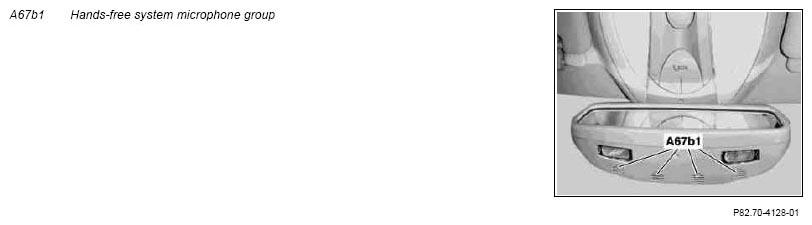

Fig 1: Identifying Hands-Free System Microphone Group

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Hands-free system microphone, location	The hands-free system microphone group (A67b1) is integrated in the inside rearview mirror unit (A67).
Hands-free system microphone, purpose	Voice input for making telephone calls using the hands-free system Voice input for the Voice Control System (interactive dialogue with the VCS)
