Hands-free microphone, location/task - GF82.70-P-4102T

MODEL 211.0 /2 as of 1.6.04 up to 31.5.06 with CODE (388) "Portable CTEL" UPCI telephone system with CODE (387) Preinstallation for telephone "Handy" UPCI system, USA/Canada with CODE (386) Preinstallation for "portable CTEL" UPCI telephone system

MODEL 211.0 /2 up to 30.5.04 with CODE (380) Preinstallation for MB phone "CTEL", complete with CODE (381) MB phone "Standard" in console on right side of dome with CODE (382) MB phone "CTEL" in console on right side of dome with CODE (853) MB standard cellular telephone with CODE (854) MB portable cellular telephone

MODEL 211.0 /2 up to 31.5.06 with CODE (383) With telephone "Standard" in console on right side of dome with integrated TELEAID emergency call system, hands-free system and antenna with CODE (813) Voice control system (VCS)

MODEL 211.0 /2 as of 1.6.04 up to 30.6.06

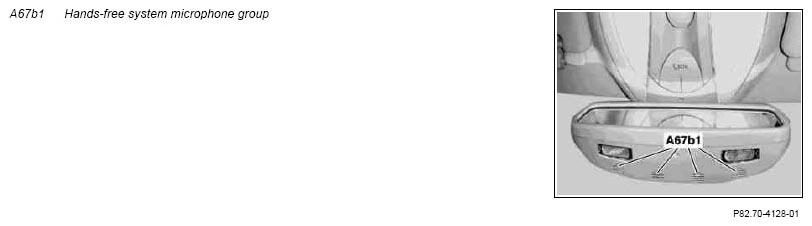

Fig 1: Identifying Hands-Free System Microphone Group

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Hands-free system microphone, location	The hands-free system microphone group (A67b1) is integrated into the inside rearview mirror unit (A67).
Hands-free system microphone, purpose	The hands-free system microphone group (A67b1) is used for: Voice input for making telephone calls using the hands-free system Voice input in vehicles with code (813) voice control system (VCS) Voice input for vehicles with code (383) "Standard" MB telephone in console on right side of dome with integrated TELE AID emergency call system
