GPS antenna, location/task - GF82.62-P-4107TU
MODEL 211.0 up to 30.6.06 with CODE (528) HIGH Class USA

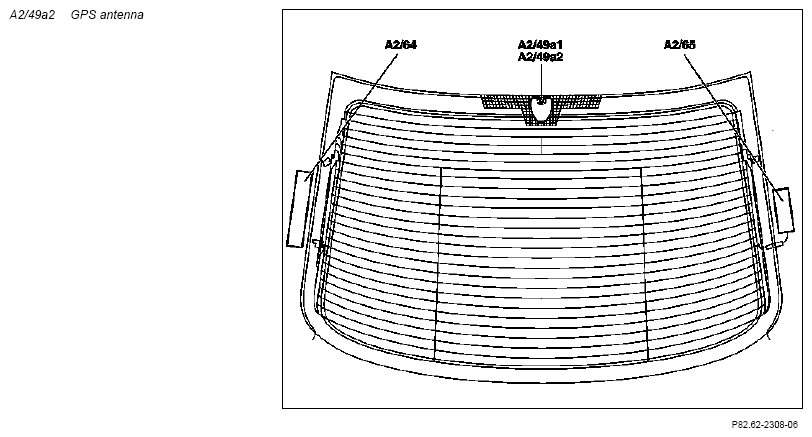

| GPS antenna, location | The GPS antenna (A2/49a2) is accommodated within the combined telephone and GPS roof antenna (A2/49). This is located above the defroster at the edge of the rear window. |
| GPS antenna, task | The GPS antenna (A2/49a2) is an active antenna and is supplied with energy from the telecommunications control unit (N112). It supplies the navigation processor (N41/1) and emergency call system with the position data from the navigation satellites. |
