Audio gateway control module location/task/design/function - GF82.62-P-3102TJ

MODEL 211.0 /2 with CODE (529) HIGH Class Japan

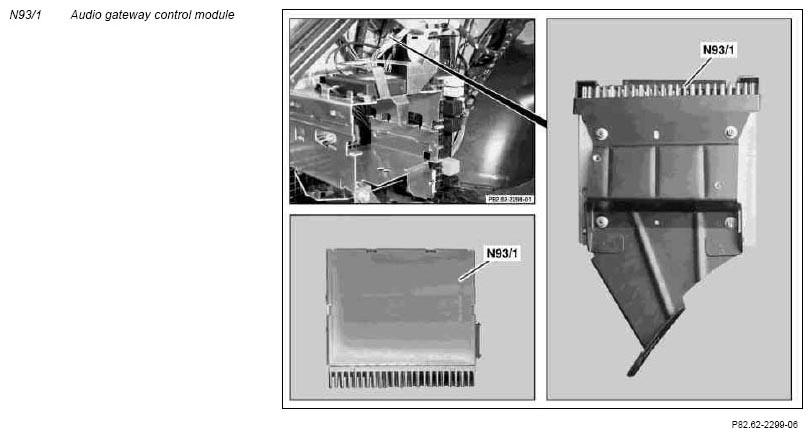

Fig 1: Identifying Audio Gateway Control Module

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Audio gateway control unit, location	The audio gateway control module (N93/1) is located on the side wall behind the left wheelhouse.
Audio gateway control unit, task	Central control of audio processing stages and amplifier stages Sound settings AM/FM receiver CAN-B/MOST interface MOST central diagnostic interface DRO microphone input
Audio gateway control module, design		GF82.62-P-3102-03TJ
Audio gateway control module, function		GF82.62-P-3102-04TJ
