Antenna amplifier module, location/task/design/function - GF82.62-P-3105TU
MODEL 211.0 /2 with CODE (528) HIGH Class USA
Shown on model 211.0

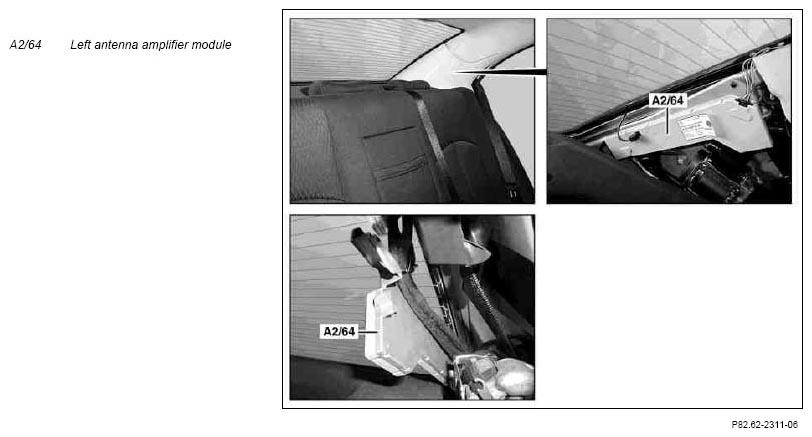

| Antenna amplifier module, location | The left antenna amplifier module (A2/64) is attached to the C-pillar on the left in the direction of travel. The right antenna amplifier module (A2/65) is fitted at the same position on the opposite side. | |
| Model 211.2 | GF82.62-P-3105-01TU | |
| Antenna amplifier module, purpose | Contacting of rear window antennae on model 211.0, contacting of side window antennae on model 211.2, automatic selection of optimum FM antennae and TV antennae and amplification and filtering of all antennae signals | |
| Antenna amplifier module, design | GF82.62-P-3105-03TU | |
| Antenna amplifier module, function | GF82.62-P-3105-04TU |
