Antenna amplifier module, location/task/design/function - GF82.62-P-3105TJ
MODEL 211.0 /2 with CODE (529) HIGH Class Japan
Shown on model 211.0

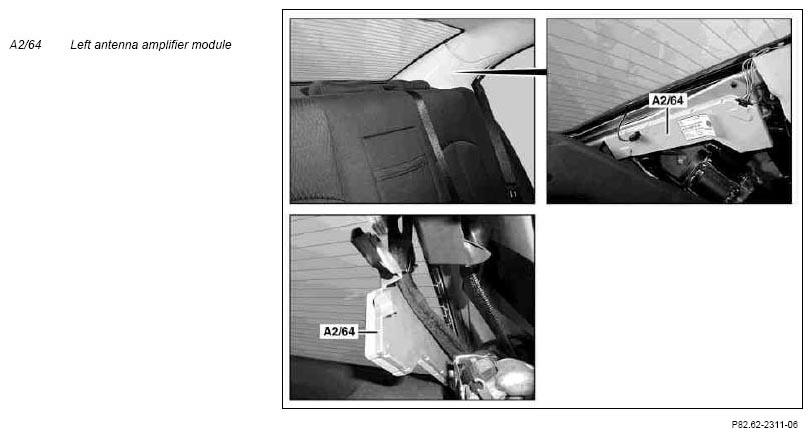

| Antenna amplifier module, location | The left antenna amplifier module (A2/64) is mounted to the left of the C-pillar in direction of travel. The right antenna amplifier module (A2/65) is fitted at the same position on the opposite side. | |
| Model 211.2 | GF82.62-P-3105-01TJ | |
| Antenna amplifier module, purpose | Contacting of the rear window antennas in Model 211.0, contacting of the side window antennas in Model 211.2, automatic selection of the optimal FM and TV antennas (antenna diversity) and amplification and filtering of all antenna signals | |
| Antenna amplifier module, design | The left antenna amplifier module (A2/64) serves as a radio remote central locking receiver, as a filter and as an AM/FM amplifier. The right antenna amplifier module (A2/65) serves as a filter and 2 TV amplifier, VICS output or passive Keyless Go module |
|
| Antenna amplifier module, function | GF82.62-P-3105-04TJ |
