Washer pump, location/task/design/function - GF82.35-P-4101T
Model 211.0 /2

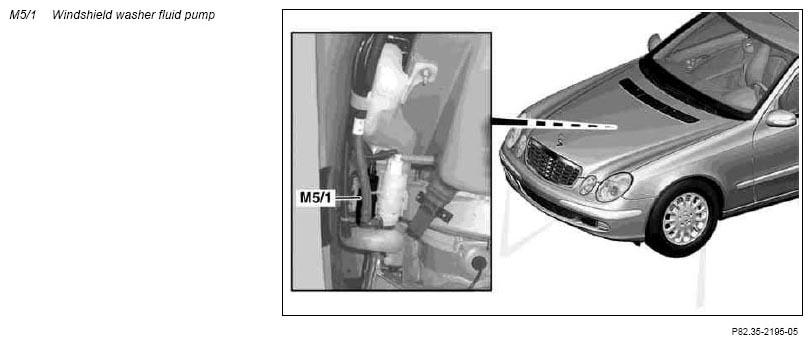

| Washer pump, location | The windshield washer fluid pump (M5/1) is located on the washer fluid reservoir at the back of the front right wheelhouse. |
| Washer pump, purpose | The purpose of the windshield washer pump (M5/1) is to pump washing water for cleaning the windshield. |
| Washer pump, design | The windshield washer pump (M5/1) is driven by a DC motor integrated into the pump housing. |
| Washer pump, function | With the washing function, the windshield washer fluid pump (M5/1) pumps the washer fluid out of the reservoir onto the windshield via the hoses and washer fluid nozzles. Actuation is carried out by the driver-side SAM control module with fuse and relay module. |
