Telescopic nozzle for headlamp cleaning system, location/task/design/function - GF82.15-P-2100PP
MODEL 203.0 /2 /7 with CODE (600) Headlamp cleaning system up to Model Year 8
MODEL 209.3 /4, 211.0 /2 with CODE (600) Headlamp cleaning system
Illustrated on Model 203.0

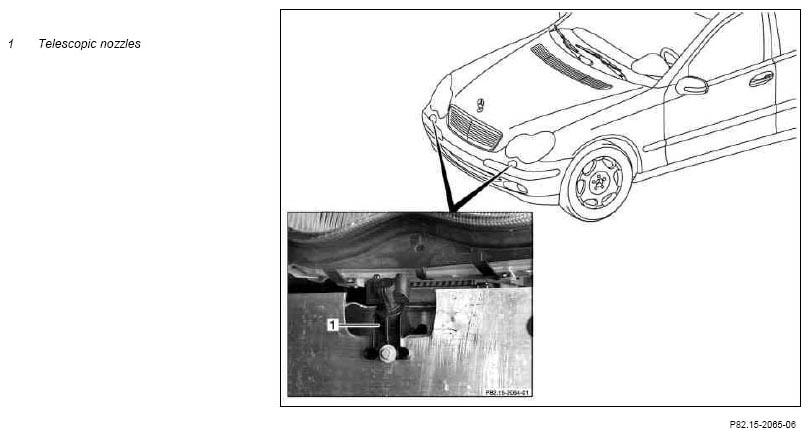

| Headlamp cleaning system telescopic nozzle, location | The telescopic nozzles (1) are located centrally beneath the headlamps. | |
| Telescopic nozzle for headlamp cleaning system, task | Cleaning headlamp lenses. | |
| Telescopic nozzle for headlamp cleaning system, design | The telescopic nozzle (1) is a hydraulically extendable telescope with an integrated return spring. It does not have any electrical connection. | |
| Function of headlamp cleaning system telescopic nozzles | GF82.15-P-2100-04PP |
