Roof sign lamp, location/task/design/function - GF82.25-P-4201T

MODEL 211.0 /2 with CODE (450) Taxi version

Shown on model 211.0

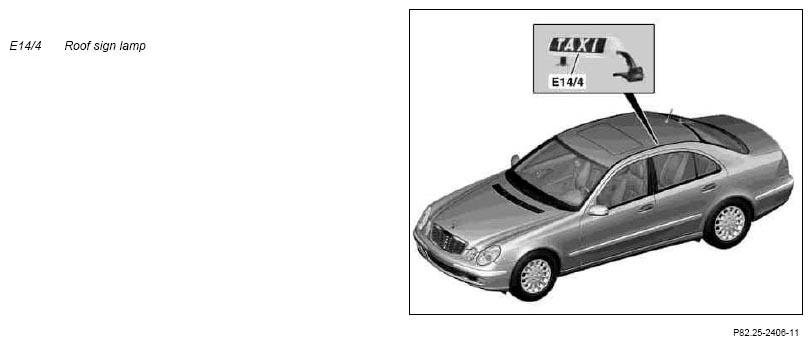

Fig 1: View Of Roof Sign Lamp

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Roof sign lamp, location	The roof sign lamp (E14/4) is mounted on the driver-side with the roof sign bracket.
Roof sign lamp, task	Display of availability (occupied or free) Signal for taxi emergency alarm
Roof sign lamp, design	The lamp body is mounted on a metal frame. The voltage supply is set up via the connection in the roof sign bracket.
Roof sign lamp, function	The roof sign lamp (E14/4) is actuated depending on the taximeter status via the special vehicle multifunction control module (MSS) (N26/9).
