Operating unit for special signal system, location/task/design/function - GF82.25-P-2111T

MODELS 211.0 /2 with CODE (970) police emergency vehicles

The open version is shown

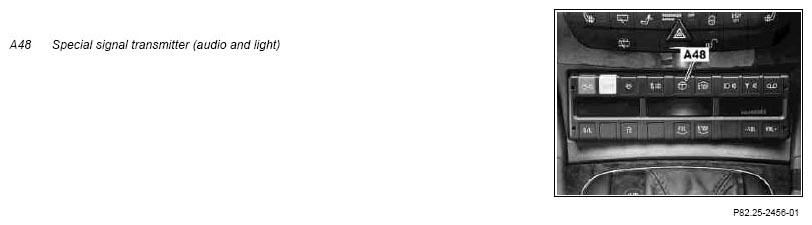

Fig 1: Identifying Special Signal Transmitter (Audio And Light) - Open Version

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The disguised version is shown

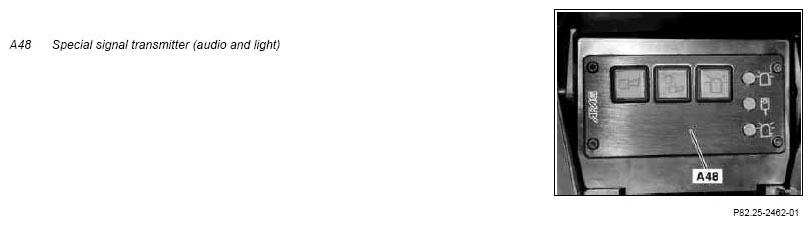

Fig 2: Identifying Special Signal Transmitter (Audio And Light) - Disguised Version

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Special signal system operating unit, location	With the open version, the special signal operating unit (audio and light) (A48) is located in the center console instead of the ashtray, with the disguised version it is located in the small stowage compartment between the front seats.
Operating unit for special signal system, task		GF82.25-P-2101-02T
Special signal system operating unit, design	The special signal operating unit (audio and light) (A48) consists of the control unit and the operating unit with LCD and 18 buttons (if equipped). The buttons are illuminated and equipped with a cycled feedback.
Special signal system operating unit, function		GF82.25-P-2111-04T
