Alarm, Entertainment, Lighting & Wiper/Washer -- Basic Knowledge -- E550 (211.072)
>>
Basic Knowledge
>>
Headlight cleaning system (HCS) component network - GF82.15-P-0002-04T
Headlight cleaning system (HCS) component network - GF82.15-P-0002-04T

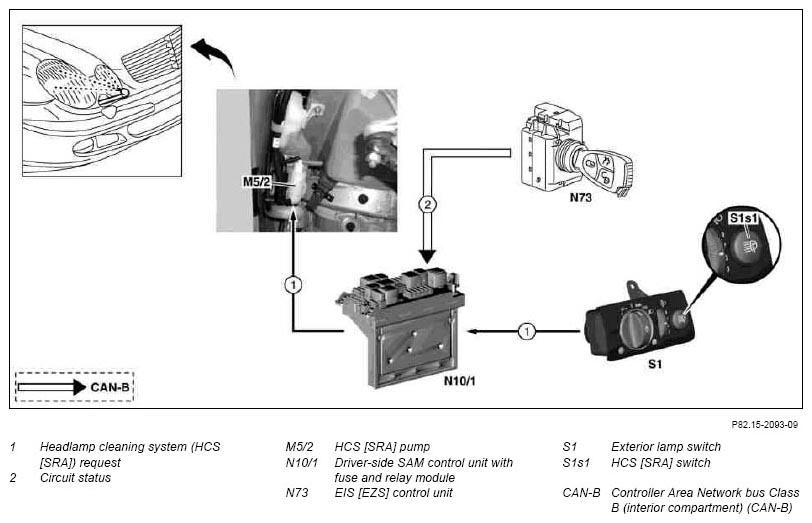

Fig 1: Networking Of Headlight Cleaning System Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
