Headlamp leveling system motor, location/task/design/function - GF82.10-P-2101T

MODEL 211.0 /2 up to 31.5.06 except CODE (614) Bi-xenon headlamp unit except CODE (615) Bi-xenon headlamp unit with integrated curve illumination

MODEL 211.0 /2 as of 1.6.06 except CODE (494) USA version except CODE (498) Japan version except CODE (614) Bi-xenon headlamp unit except CODE (618) Bi-xenon headlamps except CODE (621) Intelligent Light System (left-hand traffic) except CODE (622) Intelligent Light System (right-hand traffic)

MODEL 211.0 /2 as of 1.7.06 with CODE (494) USA version except CODE (614) Bi-xenon headlamp unit except CODE (622) Intelligent Light System (right-hand traffic)

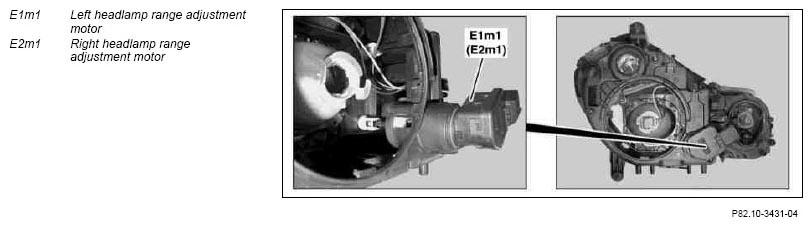

Fig 1: Identifying Headlamp Range Adjustment Motors

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Headlamp range adjustment motor, location	The left headlamp range adjustment motor (E1m1) is installed at the rear of the left front lamp unit, and the right headlamp range adjustment motor (E2m1) is installed at the rear of the right front lamp unit.
Headlamp range control motor, purpose	The left headlamp range adjustment motor (E1m1) and the right headlamp range adjustment motor (E2m1) adjust the incline angle of the relevant reflector.
