Function activation - GF82.25-P-2005T

MODELS 211.0 /2 with CODE (970) police emergency vehicles

15.03.07

The document has been updated to this date and will no longer be subject to revision.

The operating unit with disguised version is shown

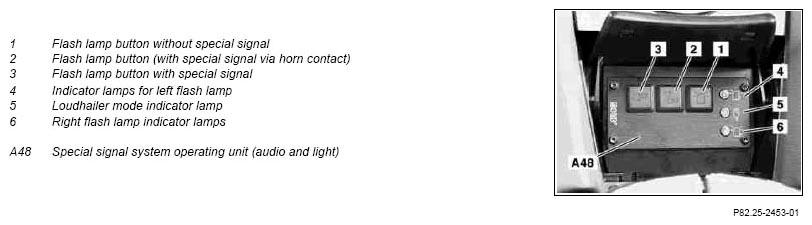

Fig 1: Identifying Special Signal System Operating Unit Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Flash lamp button without special signal (1) on

The optical signal (priority vehicle warning light) is on. The function of the left and right flash lamp is indicated by the indicator lamp for the left (4) and right (6) flash lamps.

Flash lamp button (2)

The optical signal (priority vehicle warning light) is on. The function of the right and left flash lamp is indicated by the indicator lamp for the left (4) and right (6) flash lamps. If the fanfare horns button (S110s5, S111s5) is actuated, a special signal cycle is emitted via the outside speakers for the special signal.

The function can be repeated as often as desired.

Flash lamp button with special signal (3)

The optical and acoustic signal is constantly running.

The function of the right and left flash lamp is indicated by the indicator lamps for the left (4) and right (6) flash lamps.

The function of the buttons are linked to each other. When one button is actuated, the function of the button that is located to the right next to it is also switched on automatically. These buttons do not have to be pressed additionally.

Operating module for special signal system, location/task/design/function	GF82.25-P-2111T
Special vehicle multifunction control module (SVMCM [MSS]), location/task/design/function	GF82.25-P-4112T
Roof equipment for special signal system, location/task/design	GF82.25-P-3120T
