Door contact switch, location/task/design/function - GF82.20-P-4102T
MODELS 211.0 /2 /6
Shown on model 211.0
In Model 211.6, depending on equipment and special body, the number and position of the interior lamps may vary.

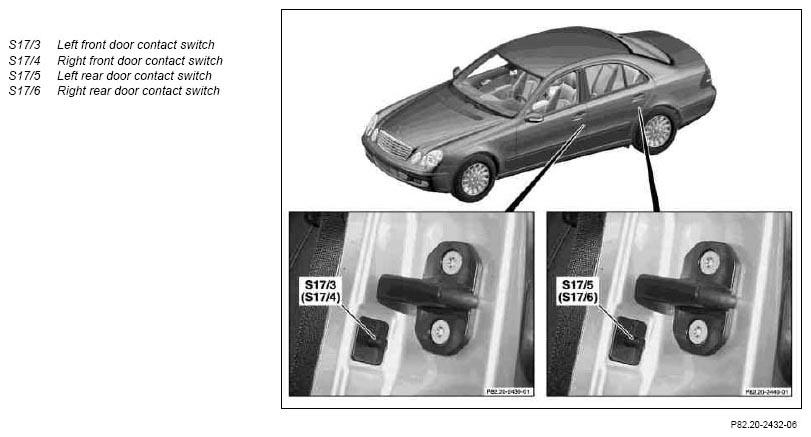

| Door contact switches, position | The left front door contact switch (S17/3) and right front door contact switch (S17/4) are located in the B-pillar at the level of the closing wedge. The left rear door contact switch (S17/5) and the right rear door contact switch (S17/6) are fitted in the C-pillar in the area of the closing wedge. |
| Door contact switches, task | Using the door contact switches the status of the vehicle doors "open" or "closed" is measured as an electrical signal. |
| Door contact switches, design | The door contacts are openers. The switching contacts are open when the doors are closed. |
| Function of door contact switches | When the door is open, the respective door contact switch sets ground on the corresponding input of the rear SAM control unit with fuse and relay module (N10/2); this then places the message about the status of the doors on the interior CAN. |
