Control module for headlamp range adjustment, location/task - GF82.10-P-2102T
MODEL 211.0 /2 up to 31.5.06 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with integrated curve illumination except CODE (494) USA version except CODE (498) Japan version
MODEL 211.0 /2 up to 30.6.06 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with integrated curve illumination with CODE (494) USA version with CODE (498) Japan version
Shown on model 211.0

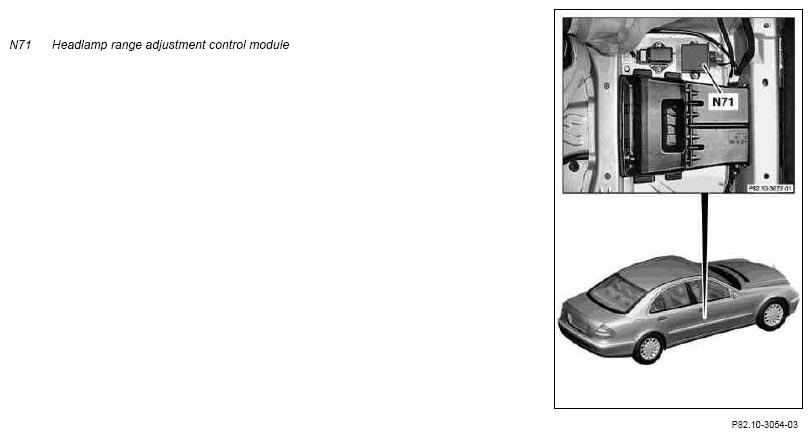

| Headlamp range adjustment control module, location | The headlamp range adjustment control unit (N71) is fitted to the right side of the vehicle and the floor covering under the front passenger seat. | |
| Headlamp range adjustment control module, task | GF82.10-P-2102-02T |
