Combination switch, location/task/design/function - GF82.30-P-2100PP
MODEL 203.0 /2 /7 up to 23.4.04, 209.3 /4, 211.0 /2

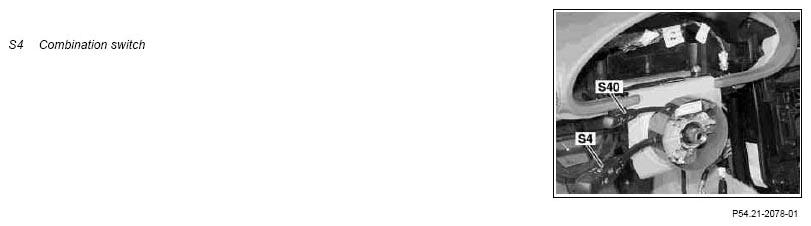

Shown on Model 203.0
| Combination switch, location | The combination switch (S4) is mounted on the steering column. | |
| Combination switch, purpose | The combination switch (S4) controls the following functions: Turn signal, high and low beam, headlamp flasher, windshield wiper, and windshield washer system. |
|
| Combination switch, design | The combination switch (S4) contains the left and right turn signal switch group, headlamp flasher switch/high beam switch, low beam switch, windshield washer system switch and the wipe switch. | |
| Combination switch, function | MODEL 203, 209 | GF82.30-P-2100-04PP |
| Model 211 | GF82.30-P-2100-04T |
