Remove/install windshield washer nozzle - AR82.35-P-6970T
MODEL 211.0/ 2/ 6
MODIFICATION NOTES
| 15.1.04 | Disconnect/connect/remove ground lead from battery |
| Remove/install | ||
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000T |

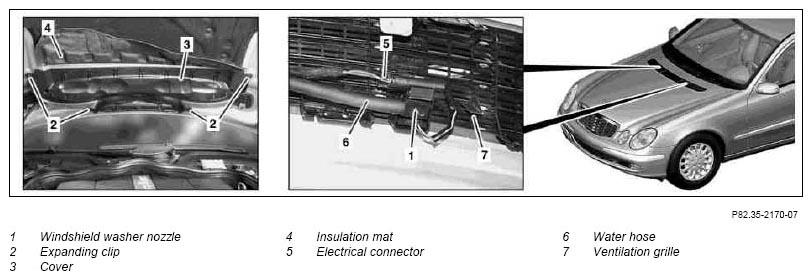

| 2 | Fold back insulation mat (4) in region of cover (3) | |
| 3 | Remove spreader clips (2) and unclip cover (3) from engine hood | |
| 4 | Disconnect electrical connector (5) from left or right windshield washer nozzle (1) | |
| 5 | Detach water hose (6) from left or right windshield washer nozzle (1) | |
| 6 | Unclip left or right windshield washer nozzle (1) from ventilation grille (7) and remove | |
| 7 | Install in the reverse order | |
| 8 | Check settings of left and right windshield washer nozzle (1) of windshield washer system and correct if necessary | |
| Check setting of windshield washer system spray nozzles | AP82.35-P-8252-01T |
