Remove/install telescoping nozzle for headlamp cleaning system - AR82.15-P-6100TA
MODEL 211.0 /2 with CODE (489) AIRmatic (semi-active air suspension) with CODE (600) Headlamp cleaning system

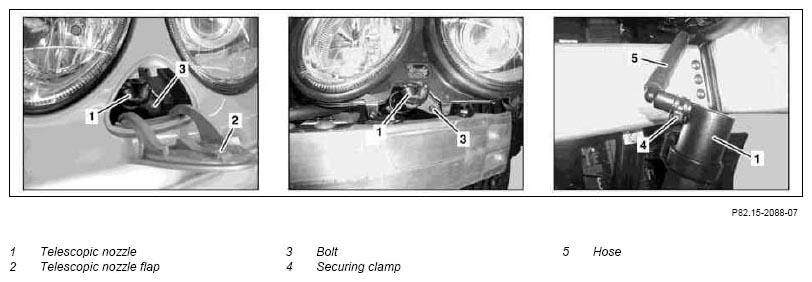

Shown on left telescopic nozzle
| Remove/install | |||
| 1.1 | Remove left front headlamp unit | Only when removing left telescopic nozzle (1). | AR82.10-P-4730TA |
| 2.1 | Fold open telescopic nozzle flap (2) | Only when removing right telescopic nozzle (1). | |
| 3.1 | Unscrew bolt (3). | Only when removing right telescopic nozzle (1). | |
| 4.1 | Take off front engine compartment panel | Only when removing right telescopic nozzle (1) on vehicles with gasoline engine. | AR61.20-P-1105T |
| 4.2 | Remove bottom section of soundproofing at front | Only when removing right telescopic nozzle (1) on vehicles with diesel engine. | AR94.30-P-5300T |
| 5 | Press retaining clip (4) and detach hose (5) from the telescopic nozzle (1) | ||
| 6 | Remove telescopic nozzle (1) | ||
| 7 | Install in the reverse order | ||
| 8 | Check headlamp cleaning system for proper function | ||
| Windshield wipers, windshield washer system and headlamp cleaning system - function check | AP82.30-P-8252A |
