Remove/install telescoping nozzle for headlamp cleaning system - AR82.15-P-6100T
MODEL 211.0 /2 /6 with CODE (600) Headlamp cleaning system except CODE (489) Airmatic (semi-active air suspension)

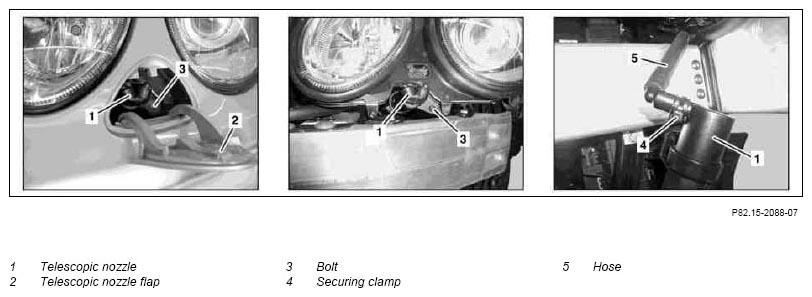

Illustrated on left telescopic nozzle
| Remove/install | |||
| 1 | Fold open telescopic nozzle flap (2) | ||
| 2 | Unscrew bolt (3). | ||
| 3.1 | Remove bottom engine compartment paneling at front | Vehicles with gasoline engines | AR61.20-P-1105T |
| 3.2 | Remove bottom part of noise encapsulation at the front. | Vehicles with diesel engines | AR94.30-P-5300T |
| 4 | Place telescopic nozzle (1) to rear of engine compartment until the safety clip (4) is accessible | ||
| 5 | Press safety clip (4) and detach hose (5) from the telescopic nozzle (1) | ||
| 6 | Remove telescopic nozzle (1) | ||
| 7 | Install in the reverse order | ||
| 8 | Check headlamp cleaning system for proper function | ||
| Windshield wipers, windshield washer system and headlamp cleaning system - function check | AP82.30-P-8252A |
