Remove/install telecommunications control unit - AR82.70-P-7000T
MODEL 211.0/2 with CODE (381) CP-Light telephone system with CODE (383) CP-High telephone system with CODE (498) Japan version except CODE (494) USA version
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Transfer basic data from telecommunications control unit (N112) into STAR DIAGNOSIS and authorize the telecommunications control unit (N112) | When replacing the telecommunications control unit (N112) on vehicles with code (383) CP-High telephone system | |
| For Germany and Austria on vehicles with code (383) CP-High telephone system. Automatic data transfer | AR82.95-P-7000-01TT | ||
| For Germany and Austria on vehicles with code (383) CP-High telephone system. Manual data transfer (automatic data transfer not possible) | AR82.95-P-7000-01T | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2.1 | Remove emergency call system antenna splitter (A2/25) | On vehicles with code (383) CP-High telephone system or code (498) Japan version | AR82.70-P-8953T |
| 3 | Detach electrical connectors on telecommunications control unit (N112) or E-call control unit (N112) | ||
| 4 | Detach fiber optic cable (1) on telecommunications control unit (N112) or E-call control unit (N112) | ||
| 5 | Cover fiber optic cable (1) | AR82.95-P-0005-01A | |
| 6 | Remove bolts (2) | ||

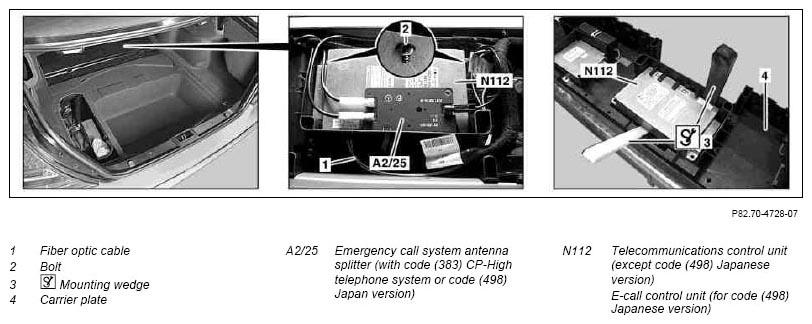

| 7 | Using mounting wedges (3) press off the telecommunications control unit (N112) or the E-call control unit (N112) from the carrier plate (4) and remove | Figure | |
| 8 | Install in the reverse order |
