Remove/install loudspeaker in front footwell - AR82.62-P-7853T

MODELS 211.0 /2 with CODE (273a) Telephone preinstallation for portable CTEL (non-networked) VDA wiring with CODE (349) E Call emergency call system with CODE (358) TELE AID with CODE (359) TELE AID emergency call system with CODE (383b) CP High telephone system with CODE (384) Phone preinstallation for USA

MODEL 211.6 with CODE (273a) Telephone preinstallation for portable CTEL (non-networked) VDA wiring

Illustrated on front left speaker

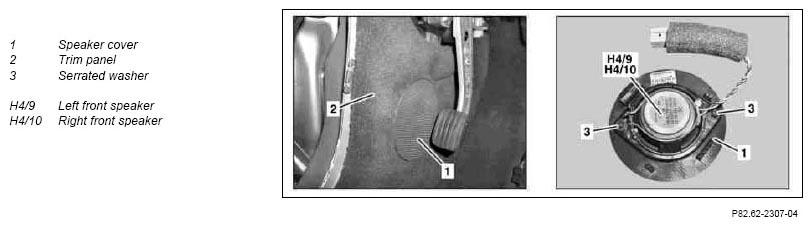

Fig 1: Identifying Front Footwell Loudspeaker Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Using longitudinal wedge, unclip the speaker cover (1) out of the paneling (2)		Figure
2	Disconnect electrical connector from left front speaker (H4/9) or right front speaker (H4/10) and detach the speaker cover (1) with the left front speaker (H4/9) or right front speaker (H4/10)
3.1	Detach toothed lock washers (3) and remove left front speaker (H4/9) or right front speaker (H4/10) from the speaker cover (1)	Only when replacing the left front speaker (H4/9) or the right front speaker (H4/10). Installation:  Replace damaged toothed lock washers (3).
4	Install in the reverse order

Fig 2: Identifying Longitudinal Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
