Remove/install lamp for vanity mirror - AR82.20-P-5582T

MODEL 211.0 with CODE (543) Sun visors with illuminated mirror

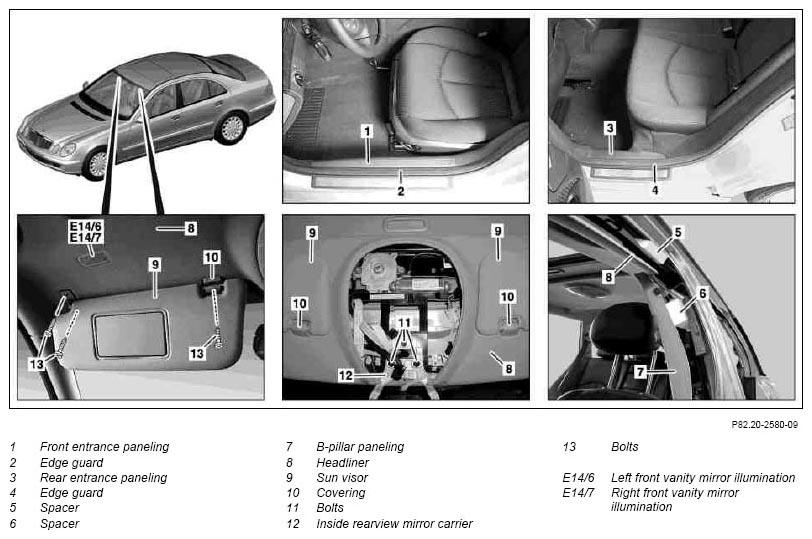

Fig 1: Identifying Vanity Mirror Lamp Components (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on removed headliner with code (413) panoramic sliding roof

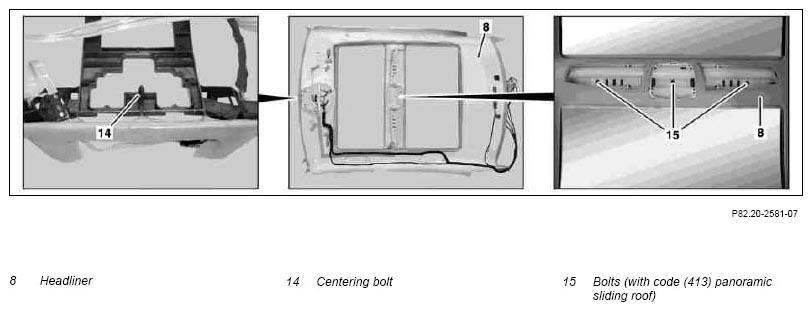

Fig 2: Identifying Vanity Mirror Lamp Components (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

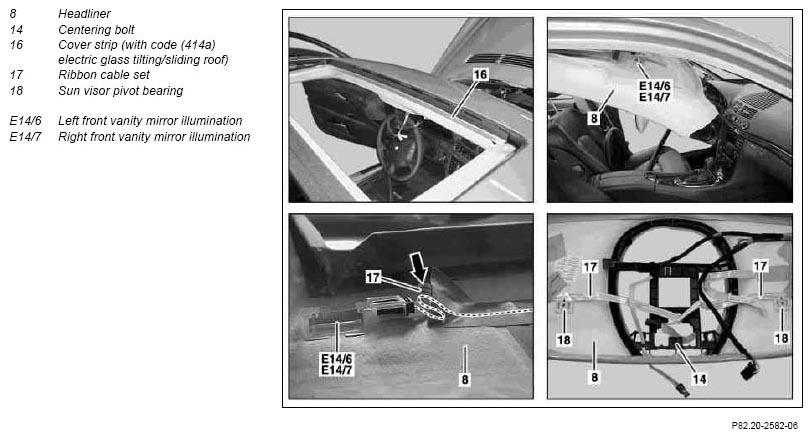

Fig 3: Identifying Vanity Mirror Lamp Components (3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1.1	Open tilting/sliding roof	on vehicles with code (414a) electric glass titling/sliding roof See Operating Instructions
2	Remove left and right paneling from Remove A-pillar		AR68.30-P-4050T
3	Remove handles from roof at left and right front		AR68.30-P-4330T
4	Remove left and right paneling from Loosen B-pillar (7) and place suitable spacer (6) underneath seat belt above height adjustment	Do not remove seat belt. See ↓
		Remove/install paneling on B-pillar (7)	AR68.30-P-4700T
5	Remove edge guard (2) on driver door cutout and front passenger door cutout
6	Remove left and right paneling from front entrance (1)
7	Remove edge guard (4) from door cutout of left rear door and right rear door
8	Remove left and right paneling from rear entrance (3)
9	Remove handles from roof at left and right rear		AR68.30-P-4330T
10.1	Remove left and right rear dome lamp	On vehicles with code (413) panoramic sliding roof and on vehicles with code (413) panoramic sliding roof and code (419) solar module for panoramic roof	AR82.20-P-0113TA
11.1	Unscrew bolts (15) from headliner (8)	On vehicles with code (413) panoramic sliding roof and on vehicles with code (413) panoramic sliding roof and code (419) solar module for panoramic roof
12	Move left and right seats all the way back and move backrests to prone position to extent possible	See Operating Instructions
13	Remove overhead control panel control unit		AR82.20-P-1000T
14	Unscrew screws (11) and remove inside rearview mirror carrier (12) from headliner (8).
15	Unscrew bolts (13), remove left and right sun visor (9)
16.1	Remove front cover strip (16) from tilting/sliding roof	on vehicles with code (414a) electric glass titling/sliding roof
17	Pull out dowel bolt (14) of headliner (8) from roof panel
18.1	Pull headliner (8) forward a short distance until it is possible to guide the rear edge of the sliding roof opening over the sliding roof cassette	on vehicles with code (414a) electric glass titling/sliding roof
19	Place suitable spacer (5) under headliner (8) on left and right	In the area of the B-pillar, between roof panel and headliner (8).
20	Lower headliner (8) at front	Lower headliner (8) carefully, as strong deformation can lead to damage.
21	Unclip covering (10) from right and left sun visor pivot bearing (18)
22	Remove left front vanity mirror illumination (E14/6) and right front vanity mirror illumination (E14/7). To do this, cut old ribbon cable set (17) after folding for strain-relief (arrow)
23	Remove left and right sun visor pivot bearing (18). To do this, cut old ribbon cable set (17) on left and right of particular sun visor pivot bearing (18)
24	Remove remaining pieces of old ribbon cable set (17) in the area of the overhead control panel retaining frame	Note correct installation positions.
25	Place new ribbon cable set (17) with left front vanity mirror illumination (E14/6) and right front vanity mirror illumination (E14/7) on headliner (8)	Part of the old ribbon cable set (17) remains on the headliner (8) and is used as a template for installing the new ribbon cable set (17).
26	Clip left front vanity mirror illumination (E14/6) and right front vanity mirror illumination (E14/7) into installation frame
27	Fit new ribbon cable set (17) with a fold for strain relief (arrow) in the area of the left front vanity mirror illumination (E14/6) and right front vanity mirror illumination (E14/7)	Observe position of fold, otherwise the left front vanity mirror illumination (E14/6) and the right front vanity mirror illumination (E14/7) cannot be taken out of the headliner (8) when replacing the bulbs and the ribbon cable set (17) will be damaged.
28	Glue new ribbon cable set (17) onto headliner (8)	Press strips of adhesive tape on sufficiently, otherwise a short circuit can result from the ribbon cable set (17) chafing on the roof paneling
		Tesa tape 4657	*BR00.45-Z-1071-02A
29	Install in the reverse order	From step 21.
