Remove/install lamp carrier for taillamp - AR82.10-P-4906T

MODEL 211.0

Shown on left taillamp with code (954a) Avantgarde

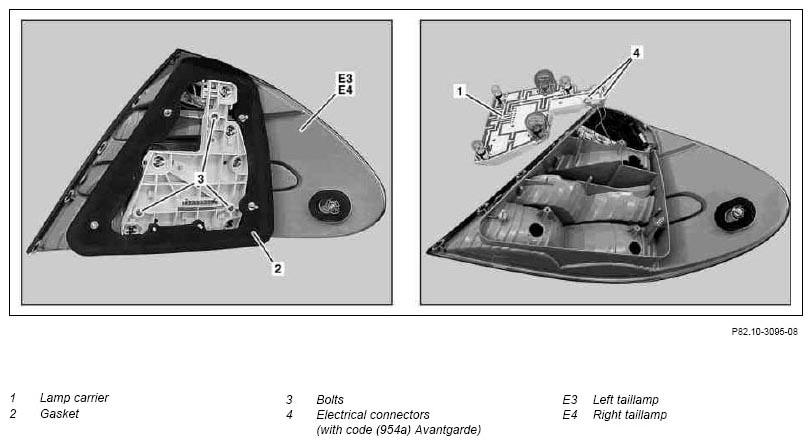

Fig 1: Identifying Taillamp Lamp Carrier Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove left taillamp (E3) or right taillamp (E4)		AR82.10-P-4905T
2	Detach gasket (2) from left taillamp (E3) or right taillamp (E4)	Check gasket (2) and replace if damaged.
3	Remove screws (3) and remove lamp carrier (1) from left taillamp (E3) or right taillamp (E4)
4.1	Unplug electrical connectors (4) and remove lamp carrier (1)	Only on vehicles with code (954a) Avantgarde
5	Install in the reverse order
