Remove/install headlight beam adjustment control unit - AR82.10-P-4081T
MODEL 211.0 /2 /6 up to 31.5.06 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
Shown on model 211.0
Shown on model 211.0
| Remove/install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove right front seat | AR91.10-P-1000T | |

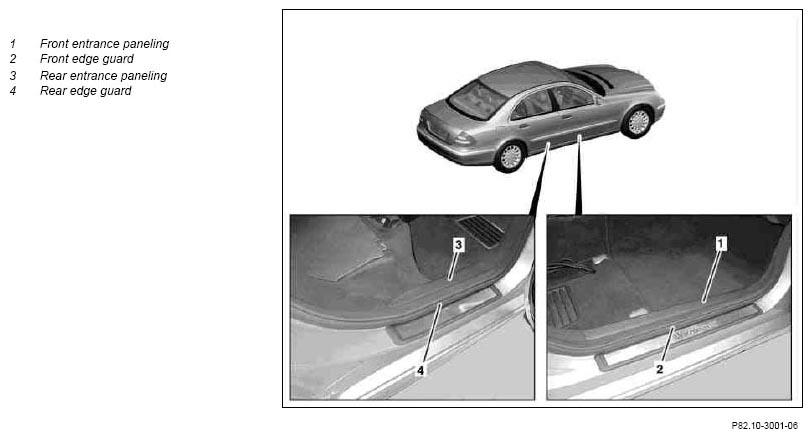

| 2 | Detach front edge guard (2) in the area of the front entrance paneling (1) | ||
| 3 | Remove front entrance paneling (1) | ||
| 4 | Detach rear edge guard (4) in the area of the rear entrance paneling (3) | ||
| 5 | Remove rear entrance paneling (3) | ||
| 6 | Unclip rear footwell air grate (6) (arrow) and remove | ||
| 7 | Pull rear floor covering (7) forward under the B-pillar paneling (8) | ||
| 8 | Lift up rear passenger compartment floor covering (7). | ||

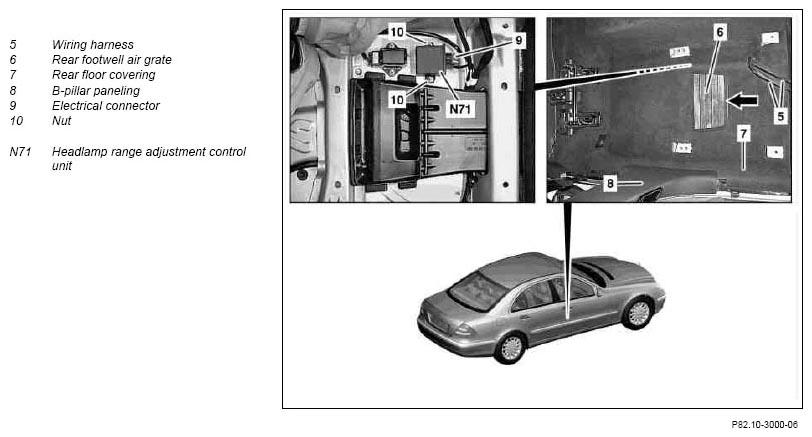

| 9 | Guide electrical wiring harness (5) out of the rear floor covering (7) | ||
| 10 | Unscrew nuts (10) and remove headlamp range adjustment control unit (N71) | ||
| 11 | Disconnect electrical connector (9). | ||
| 12 | Install in the reverse order | ||
| 13.1 | Check the headlamp setting; correct it if necessary | When installing a new headlamp range adjustment control unit (N71). | |
| Check and correct headlamp adjustment | AP82.10-P-8260T |
