Remove/install headlamp unit holder - AR82.10-P-4740T

MODEL 211.0/ 2/ 6

Shown on left front lamp unit

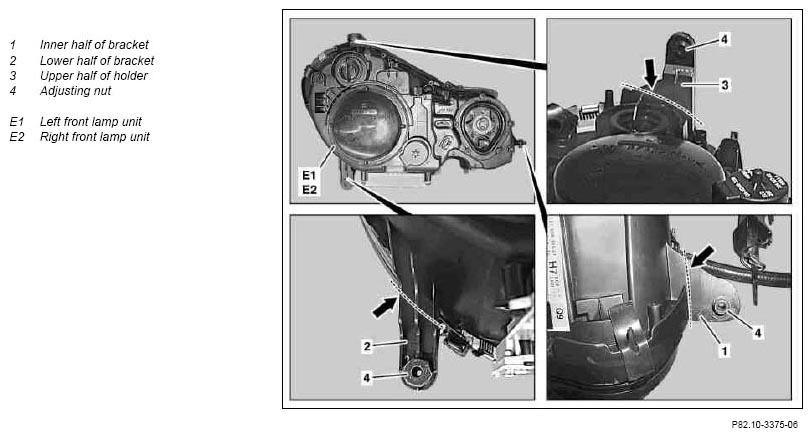

Fig 1: Identifying Headlamp Unit Holder Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on left front lamp unit

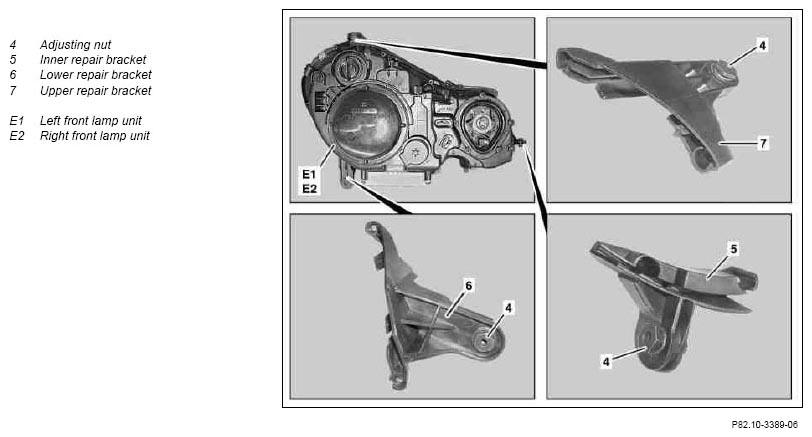

Fig 2: Identifying Headlamp Unit Holder Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and undeburred vehicle parts. Deburr replacement panels.	AS00.00-Z-0017-01A
1	Remove left front lamp unit (E1) or right front lamp unit (E2)	When removing left front lamp unit (E1) or right front lamp unit (E2).	AR82.10-P-4730TA
		When removing left front lamp unit (E1) and right front lamp unit (E2).	AR82.10-P-4730T
2	Mark location of separation point on inner half of bracket (1), lower half of bracket (2) or upper half of bracket (3)	Mark location at the planned separation point (arrow).
3	Saw off inner half of bracket (1), lower half of bracket (2) or upper half of bracket (3)	Saw off at the planned separation point (arrow).
		Body saw (electric/pneumatic)	*WE58.40-Z-1004-03A
4	Clean and deburr sawn edges
	Install
5	Adjust the adjusting nut (4) at the inner repair bracket (5), lower repair bracket (6) or upper repair bracket (7)	Adjust adjusting nut (4) corresponding to the adjusting nut (4) on inner half of bracket (1), lower half of bracket (2) or upper half of bracket (3).
6	Screw inner repair bracket (5), lower repair bracket (6) or upper repair bracket (7) onto the left front lamp unit (E1) or right front lamp unit (E2)
7	Install left front lamp unit (E1) or right front lamp unit (E2)	When installing left front lamp unit (E1) or right front lamp unit (E2).	AR82.10-P-4730TA
		When installing left front lamp unit (E1) and right front lamp unit (E2).	AR82.10-P-4730T
