Remove/install front axle level sensors - AR82.10-P-0004T
MODEL 211.0 /2 with CODE (489a) Airmatic (semi-active air suspension)
MODIFICATION NOTES
| 15.1.04 | Disconnect ground cable on battery, connect |
| Remove/Install | |||
| Risk of death cased by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle. | ||

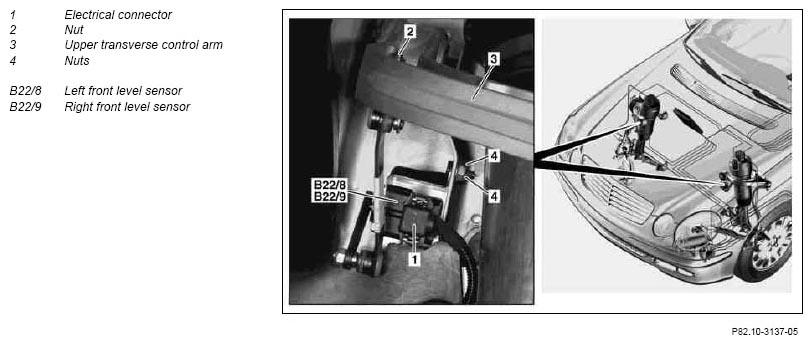

| 2 | Disconnect electrical connector (1) at left front level sensor (B22/8) or right front level sensor (B22/9) | ||
| 3 | Remove nut (2) on top transverse control arm (3) | *BA82.10-P-1001-01A | |
| 4 | Undo nuts (4) from body and remove left front level sensor (B22/8) or right front level sensor (B22/9) | *BA82.10-P-1007-01A | |
| 5 | Install in the reverse order | ||
| 6.1 | Connect STAR DIAGNOSIS and calibrate vehicle level | Only if left front level sensor (B22/8) or right front level sensor (B22/9) are to be replaced. | |
| Connect STAR DIAGNOSIS, read out fault memory | AD00.00-P-2000-04A | ||
| Diagnosis system STAR DIAGNOSIS | *WH58.30-Z-1048-13A |
FRONT AXLE LEVEL SENSOR
| Number | Designation | Model 211 with Airmatic | |
|---|---|---|---|
| BA82.10-P-1001-01A | Nut, level sensor link rod to upper wishbone | Nm | 10 |
| BA82.10-P-1007-01A | Nut for sensor with bracket to console for upper transverse control arm | Nm | 8 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
