Remove/install fog lamps - AR82.10-P-1835T
MODEL 211.0 /2 /6 up to 31.5.06

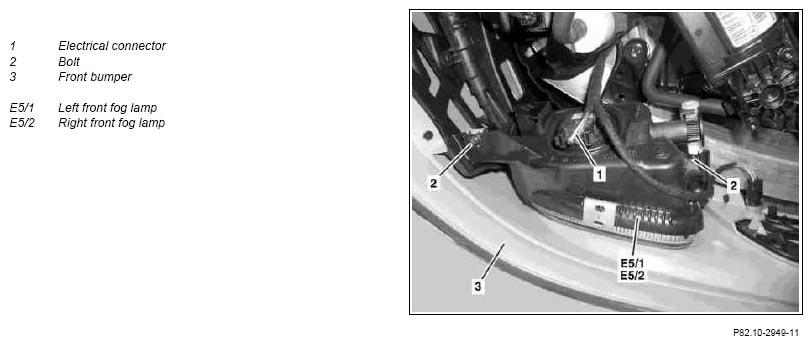

Illustrated on left fog lamp
MODIFICATION NOTES
| 14.1.04 | Disconnect/connect ground line on battery |
| Remove/install | |||
| 1.1 | Take off front engine compartment panel | Vehicles with gasoline engines | AR61.20-P-1105T |
| 1.2 | Remove bottom section of soundproofing at front | Vehicles with diesel engines | AR94.30-P-5300T |
| 2 | Disconnect electrical connector (1) | ||
| 3 | Undo screws (2) and remove left fog lamp (E5/1) or right fog lamp (E5/2) out of the front bumper (3) | ||
| 4 | Install in the reverse order | ||
| 5 | Check adjustment of left front fog lamp (E5/1) or of right front fog lamp (E5/2), correct if necessary | ||
| Check and correct headlamp adjustment | AP82.10-P-8260T |
